IP66 IK08 Aluminum LED Street Light Fixtures Free Tool Open

Name: IP66 IK08 Aluminum LED Street Light Fixtures Free Tool Open
Brand: Die Casting Man/OEM
Price: 1 USD

Quality IP66 IK08 Aluminum LED Street Light Fixtures Free Tool Open wholesale

Brand Name : Die Casting Man/OEM

Model Number : YASL-18-80

Certification : CE, RoHs, ENEC, CB

Place of Origin : NINGBO,CHINA

MOQ : 1pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 10000PCS/Month.

Delivery Time : 7-30 days base on order quantity

Packaging Details : Carton box with foam

Power : 60W 70W 80W 90W 100W

Lamp body material : Aluminum

Power factor : >0.95

Color temperature(cct) : 2700-6500K

Light source : LED

Ip rating : IP66

Working lifetime(hour) : 50000

Warranty(year) : 5

Contact Now

IP66 IK08 Aluminum LED Street Light Fixtures Free Tool Open

LED Street Light YASL-18M-80

Product Description

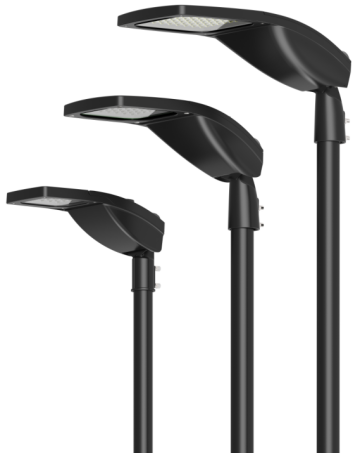

This series is a high-performance street lighting available in three sizes.

The lunimaire is manufactured from high pressure die-casting aluminum.

lt shall have a led efficiency up to 130 lm/w and will be capable of producing.

up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.

Product Specification

Product Code	YASL-18-30M	YASL-18-80M	YASL-18-150M
Input Wattage	30W 40W 50W	60W 80W 100W	120W 150W 200W
Color Temperature	2700～6500K	2700～6500K	2700～6500K
Luminous Flux	3300-3750lm	9200-10400lm	16500-19500lm
Input Voltage	AC90～305V	AC90～305V	AC90～305V
Frequency Range	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95
color rendering index	Ra≥70	Ra≥70	Ra≥70
Chip brand	Ang brand can be optional	Ang brand can be optional	Ang brand can be optional
Driver brand	Ang brand can be optional	Ang brand can be optional	Ang brand can be optional
Temperature of Working Condition	-40～50℃	-40～50℃	-40～50℃
Humidity of Working Condition	20%～90%RH	20%～90%RH	20%～90%RH
LED Lifetime	50000h	50000h	50000h
Protectin Grade	IP66	IP66	IP66
Protection level	IK08	IK08	IK08
Installation Pipe Diameter	φ45/60mm	φ60mm	φ60mm
Installation Height	4-6m	6-10m	10-12m
Net Weight	3.0kgs	6.0kgs	7.4kgs
Gross Weight	3.5kgs	6.5kgs	8.0kgs
Packing Size(m m)	545270220	720320210	820340210

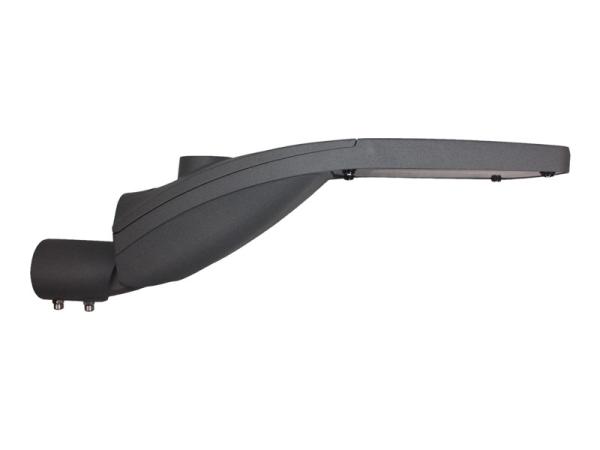

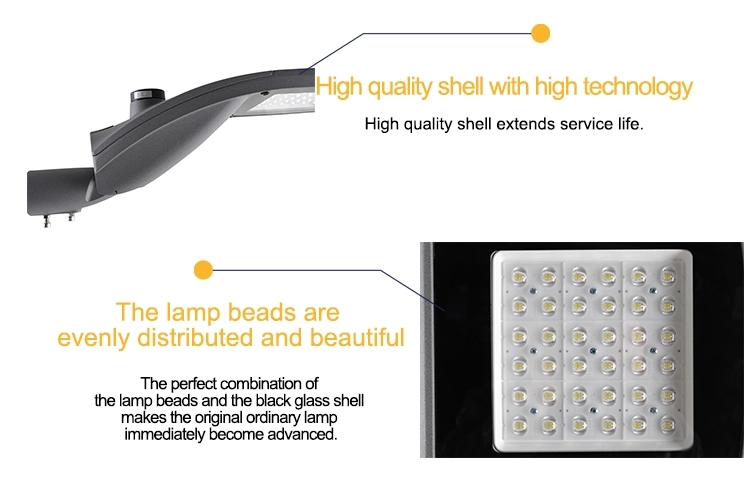

Detail Pictures

IP66 IK08 Aluminum LED Street Light Fixtures Free Tool Open

Photometric

DH-T1

DH-T3-M

DH-T4-M

DY-T3-M

GY-T2-M01

GX-T2-M

GX-T4-L

HX-T2-S

DH-T2-L

DH-T3-MA

DH-T5-M

GY-T1-M

GY-T3-M01

GX-T3-M

HY-T2-M

HX-T2-M

DH-T2-M

DH-T3-MB

DY-T2-M

GY-T2-M

GX-T2-S

GX-T4-M

HY-T3-M

HX-T3-M

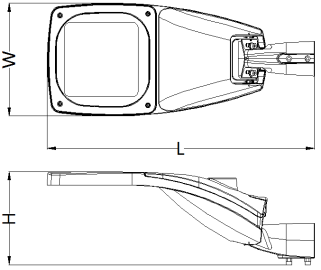

Product Size

IP66 IK08 Aluminum LED Street Light Fixtures Free Tool Open

Product Code	YASL-18-30M	YASL-18-80M	YASL-18-150M
L(mm)	495	644	740
W(mm)	220	269	308
H(mm)	190	203	207

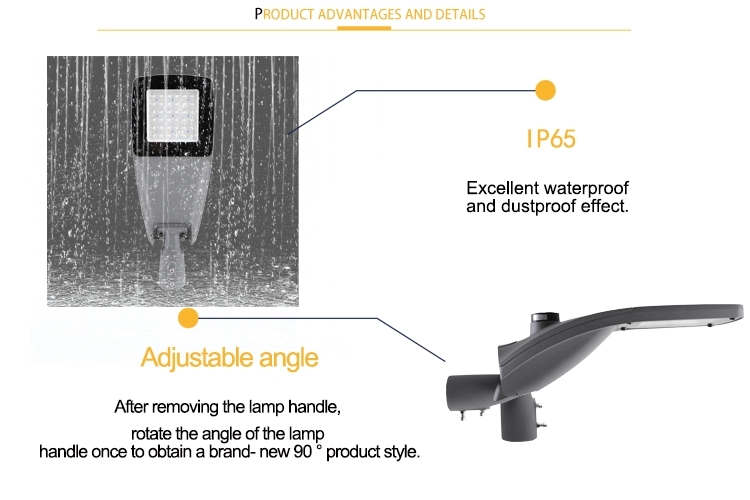

Advantages

IP66 IK08 Aluminum LED Street Light Fixtures Free Tool Open

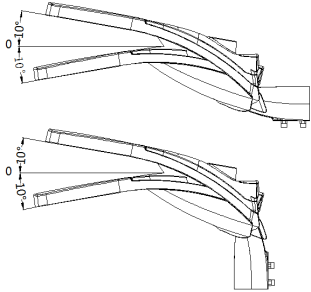

lnstalling Ways:

Both Horizontal and Vertical available and adjustable angle-10°to+10°

IP66 IK08 Aluminum LED Street Light Fixtures Free Tool Open
