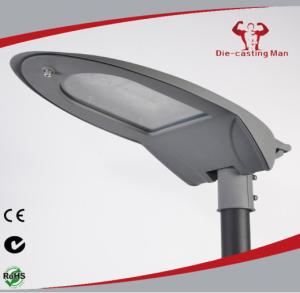

40W 80W Road Outdoor LED street light housing IP65 Aluminum die-casting housing
| Material: | ADC12 Aluminum | Wattage: | 40W 80W | |
| IP: | 65 | CRI: | ≥70 | |
| Color Temperature: | 3000/40000/6500K | Input Voltage: | AC90 - 265V | |
| Frequency Range: | 50 - 60Hz | Working Ambient Temperature: | -40℃ - 50℃ | |
| Working Ambient Humidity: | 20% - 90%RH | LED Lifetime: | 5000h | |
| Part Number: | ZHSL-06-80 |
| Production Lead Time: | 7-30 Days |
| MOQ: | 1 PCS |
| Shipping: | EXW / FOB NINGBO |
| Finish Color: | Double gray;Sandy black; |
Specifications
| Model Number | ZHSL-06-80 |
| Electrical Specifications | Frequency Range | 50/60Hz |
| Input Wattage | 40W 80W |
| Input Voltage | AC90-305V |
| Operating Humidity | 20%~90%RH |
| Working Temperature | -40 ~ 50°C |
| Power Fact(PF) | >0.95 |
| Driver Efficiency | > 0.9 |
| Photometric Specifications | LED Luminous Flux | 8400~9600 lm |
| Power Factor | PF≥0.92 |
| Led Luminous Efficiency | >100LM/W |
| CRI | Ra ≥ 70 |
| Color Temperature | 3000/4000/6500k |
| Mechanical Specifications | IP Rating | IP65 |
| Warranty | 3Years |
| Heat Radiator | die-casting body as heat sink |
| Lens | Patented anti-glare optic lense |

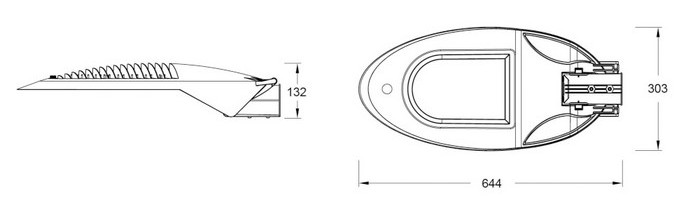

| Fixture Dimension | 646x303.5x126 MM |
| Fixture Weight | 5.5KG |
| Packing Information | Packing Type | 1 unit /ctn |
| Packing Dimension | 710x350x130 mm |
| Packing Weight | 6.0KG |
Electrical
· Standard AC input of 90-305V,up to 480v available
· EMI filter: 47CFR, part 2, part 15
· Power factor: >0.9
· Total harmonic distortion: <20%
· Surge protection: IEC/EN 61000-4-5 EMC test standard
· Licensed electrician required for installation
Housing

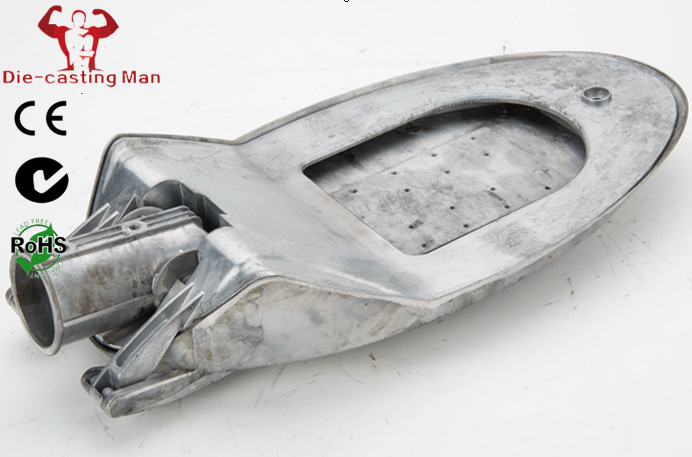

· Rugged, fully sealed, die-cast aluminum housing
· UV-resistant, multi-layer, architectural color, powder coat finish
· High impact, heat resistant, tempered lens
Energy Control Options
· Motion detection available
· Photo sensors available
